For reliable and efficient molten metal transfer, trust the WEMPump.

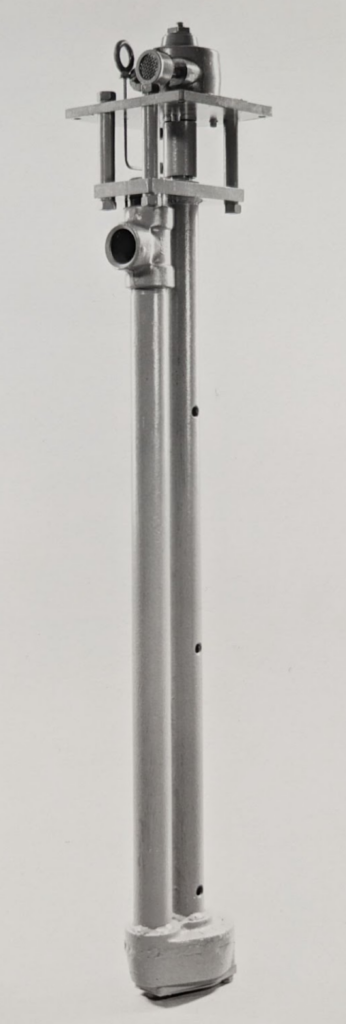

1HP Molten Metal Pump
For the Transfer of Zinc and Other Molten Metals
Introducing the 1HP WEMPump: the little brother of our original Centrifugal Pump for molten metals. The 1HP model is an efficient and powerful workhorse for smaller operations and tight spaces.
Designed for quick and safe emptying of galvanizing pots, melting and holding furnaces, it ensures efficient transfer of molten metal to containers, molds, or auxiliary settings. Built to withstand harsh environments, our rugged pump delivers reliable performance.
By adjusting a valve, the operator can remotely throttle the pump speed for precise metal delivery. In emergencies, a single operator can safely handle the pump, managing pan failure during shutdown periods.
Conveniently hung from a crane or chain hoist, the pump enables continuous filling of containers or molds by pivoting the discharge pipe. Ordinary 50-gallon oil drums are excellent containers, and the self-draining pump eliminates the need for cleaning.
Type | Submerged intake, vertical shaft, centrifugal with variable speed and variable discharge |
Power | 1 HP vane-type air motor, cooled and lubricated through the airline, direct coupled to the impeller shaft |
Max Operating Temperature | 900F |
Material Options | Standard Construction – submerged components made of carbon steel and iron |
Available Sizes | 3, 4 and 5 foot pump lengths |
Capacity | 200 – 900 lb/min |
Other Products
We created the original WEM Pumps in 1950 to replace hand ladling molten solutions. We’ve maintained the simplicity and principles of our original pumps, but have adapted our designs and materials to meet the demands of modern industry.
